Device Support
- Supports 100,000+ devices from 320+ manufacturers.
- Supports low voltage devices with Vcc as low as 1.2v.
- Device categories supported include memory devices,
microcontrollers, and logic devices.
- Supports standard DIP or skinny DIP packages from 8 to 48-pins
on standard equipment
- Supports a wide variety of SMD packages such as PLCC, SOIC,
TSOP, TQFP, QFN, etc., with reliable factory-made SMD adapters.
- Free software updates can be downloaded via Internet at any time.
Concurrent Programming Mode
- This gang programmer is made up of four independent programming modules.
They work concurrently, versus the parallel mode
in traditional gang programmers.
- In this mode, the programmer starts
programming as soon as a device has been inserted into the first
programming socket. By the time the operator finishes putting in the
device at the last socket, the first socket may have already finished
programming (depending on device programming time) and he can start
unloading/reloading at the first socket.
- Concurrent mode increases programmer throughput and
operator efficiency.

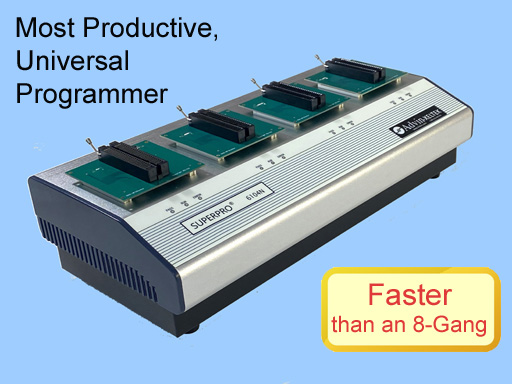

- In over 95% of cases, our concurrent 4-site
gang programmer gives better programmer throughput than
an 8-site traditional parallel gang programmer.
Programmer Speed
- Ultra fast programming speed is achieved by utilizing a local high speed
ASIC processor in each programming module of the programmer.
- Programs high-density flash memory devices at near-theoretical
maximum programming speed.
- Programs and verifies a 64M-bit NOR flash memory in 11.3 seconds
and a 1G-bit NAND Flash in 108 seconds.
Advanced Programmer Hardware
- Advanced hardware design provides clean signals and
allows programming of low-voltage devices reliably.
- Each one of the four programming modules has enough universal
pin-drivers to support large complex devices, up to 144-pins.
- Since each pin-driver is software programmable, proper voltage
levels will be applied to each and every pin, not just the Vcc pins,
allowing true low-voltage programming for low-voltage devices.
- Reverse insertion check and pin continuity check help to
prevent devices from accidental damage.
- Over-current and over-voltage protection ensures safety of the
devices and programmer hardware.
Easy-to-use Programmer Software
- Programmer software supports XP / Vista / Windows 7 / Windows 8.
- When [Adminstrator] is selected, the software allows you setup
project files. Each project file includes these settings:
- IC device manufacturer
- IC device part number, together with package type such as PLCC, TQFP, etc.
- Filename of data file
- File type, such binary, Intel hex, Motorola etc.
- Auto-sequence, such as [Erase] [Blank check] [Program] [Verify], or just [Verify], etc.
- Password control for limiting operator access to a project file
- Production mode yes or no
- Other optional controls
- When [Mass Producer] is selected, the software allows your production
operator to pick the project files which you have created. There is no need
for him to select the device type, filename, etc.. There are operator features:

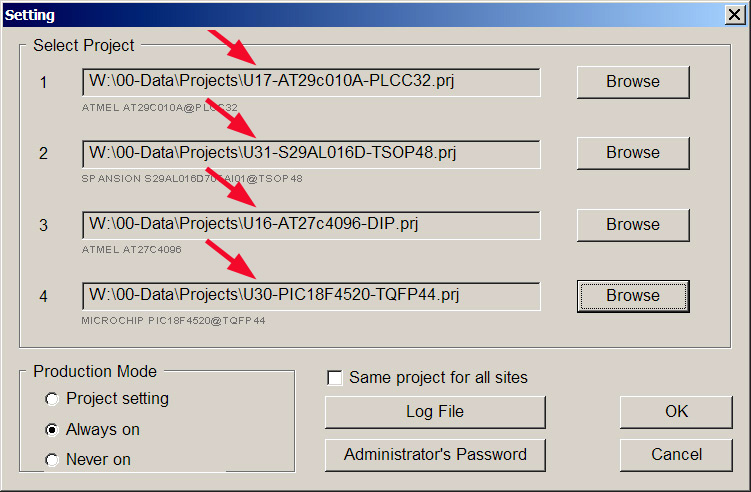

- He can choose the same project file for all four programming sites. Or he can choose different project files for different programming sites.
- Production mode yes or no
- If a project file was setup to rquire a password, then he will
need password to access that project file.
- Production mode yes or no

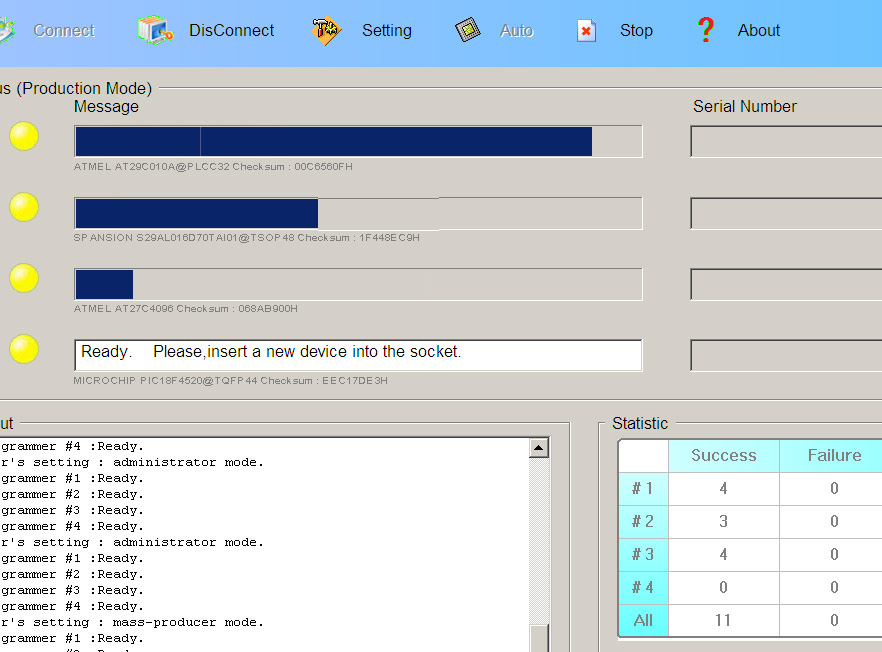

- He can see the success/fail counts and the yield statistics to
guide when to stop.
|
See how easy it is
to use the software
|
|
|
Quick-Start Guide for Adminstrator
|
Quick-Start Guide for Production Operator
|
|
GANG PROGRAMMER SPECIFICATIONS |
DEVICE SUPPORT
- Device Types Supported:
EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration
Serial PROM, FLASH Memory (NOR and NAND), Bipolar PROM,
NOVRAM, SPLD, CPLD, EPLD, Firmware HUB,
Microcontroller, Microchip PIC, MCU, Standard Logic, etc.
- Device Packages Supported on Standard Equipment:
DIP, Skinny DIP.
- SMD device Packages Supported with Optional SMD Adapters:
PLCC, JLCC, SOIC, QFP, TQFP, VQFP, PQFP, TSOP, TSOPII,
SOP, SSOP, PSOP, TSSOP, SON, QFN, EBGA, FBGA, VFBGA,
µBGA, CSP, SCSP, etc.

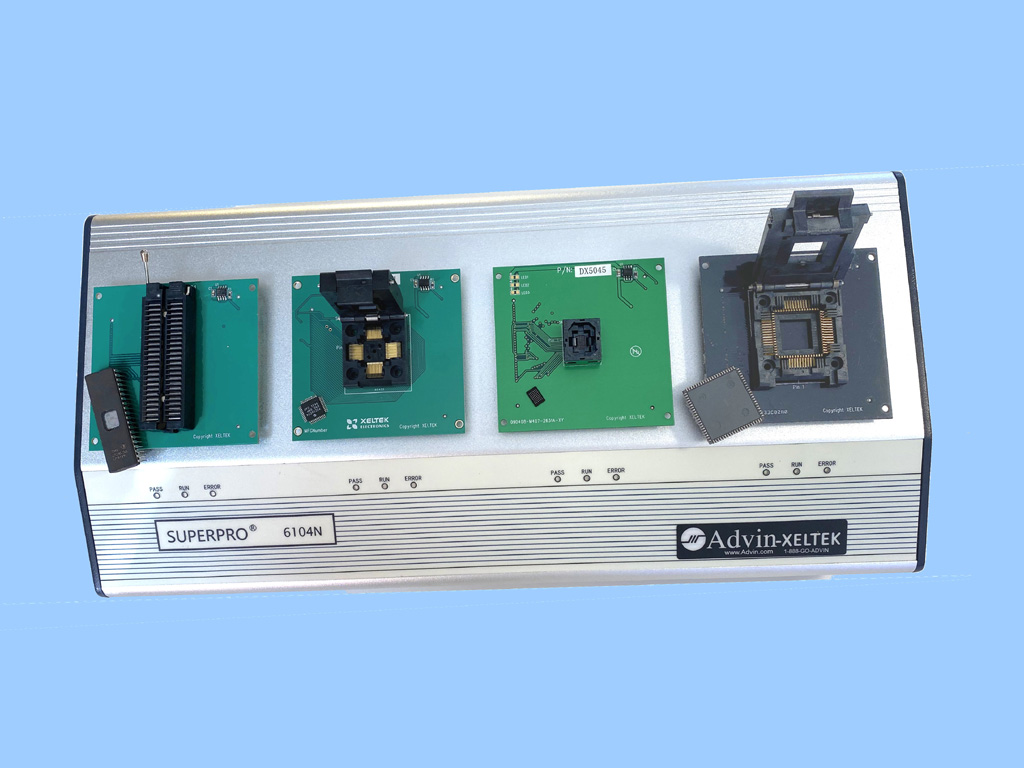

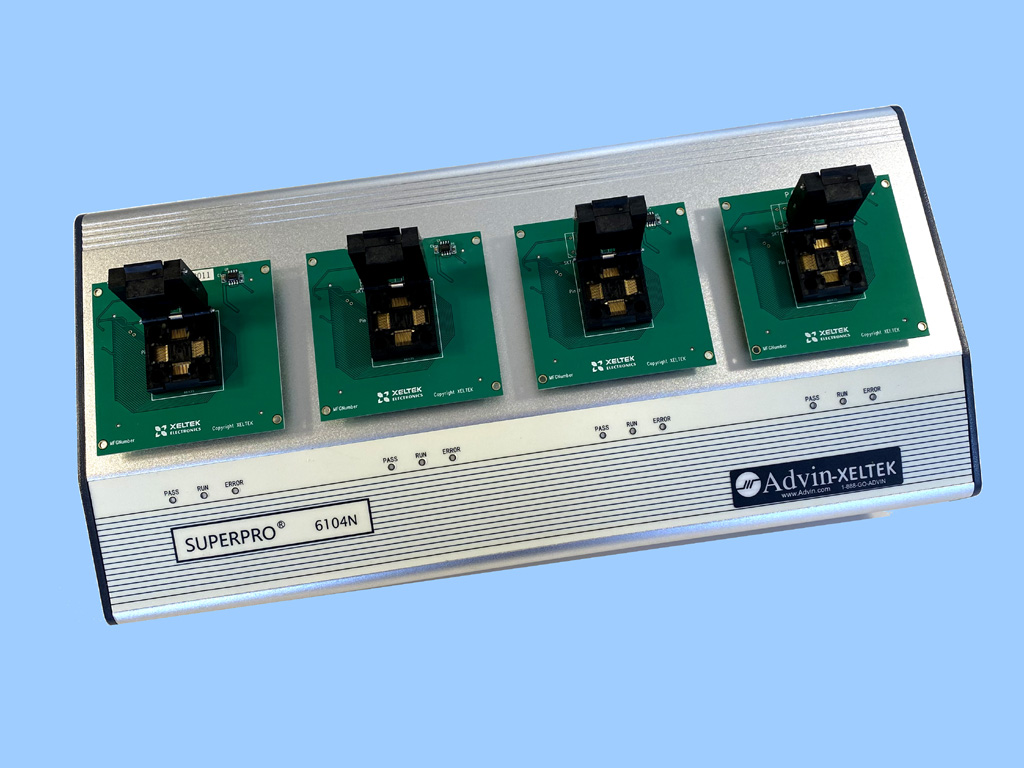

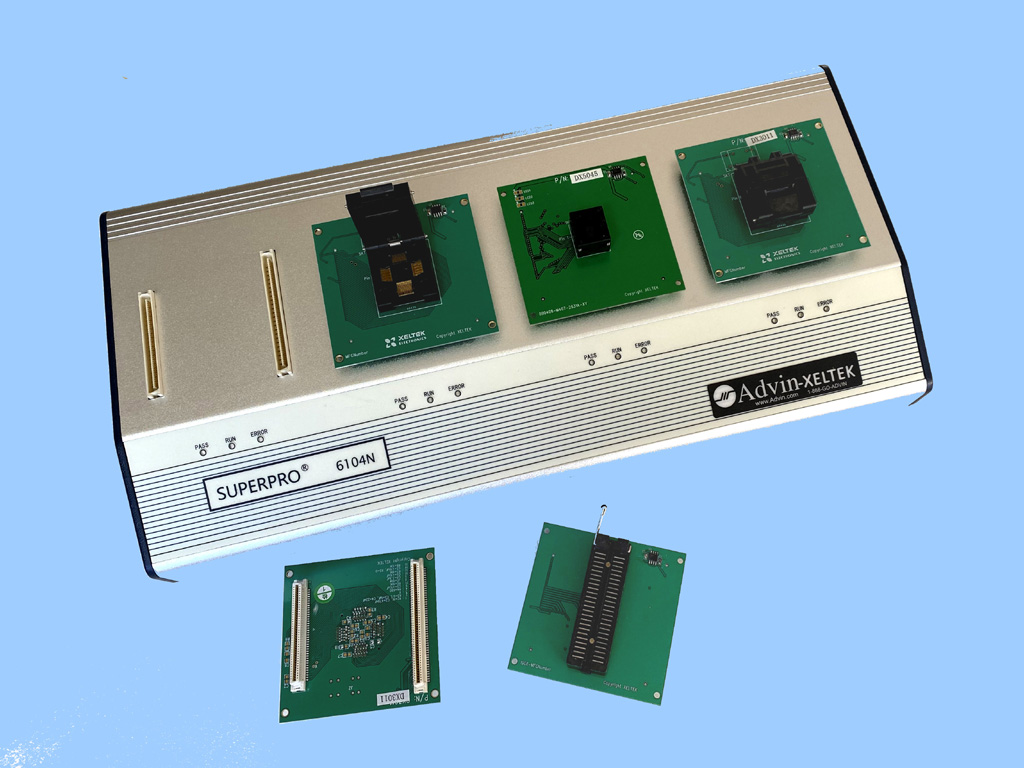

Typical view of SMD programming adapters:
|
Typical Top |
Close up |
Bottom |
DEVICE UPDATES
- Software and device algorithms are updated regularly.
- Current software can be downloaded free of charge at
http://www.advin.com/universal-EPROM-programmer-software-download.htm
HARDWARE & ELECTRICAL SPECIFICATIONS
- PC interface: USB 2.0
- AC power supply: Input 100V-240V AC, 50/60 HZ.
Output 12VDC, 7 Amp.
- Programmer physical size: 12.75" x 8.5" x 4.25" high
(32.4cm x 21.6cm x 10.8cm high)
- Net weight
Programming unit, AC power supply, USB cable: 11.75 Lbs.
Above, with carry case: 19.5 lbs.
- Gross shipping weight: 26 Lbs.
(24" x 18" x 12", or 61 x 46 x 31 cm)
INCLUDED ITEMS

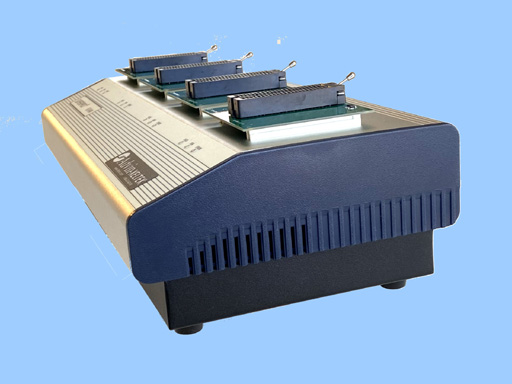

- Programming unit with FOUR 48-pin DIP ZIF socket adapter.
- AC power supply.
- USB Cable (for PC to programmer connection).
- S/W CD.
- User's Guide as soft copy in S/W CD
- Quick Start Guides.
- Gang programmer carry case.
- User-feedback form.

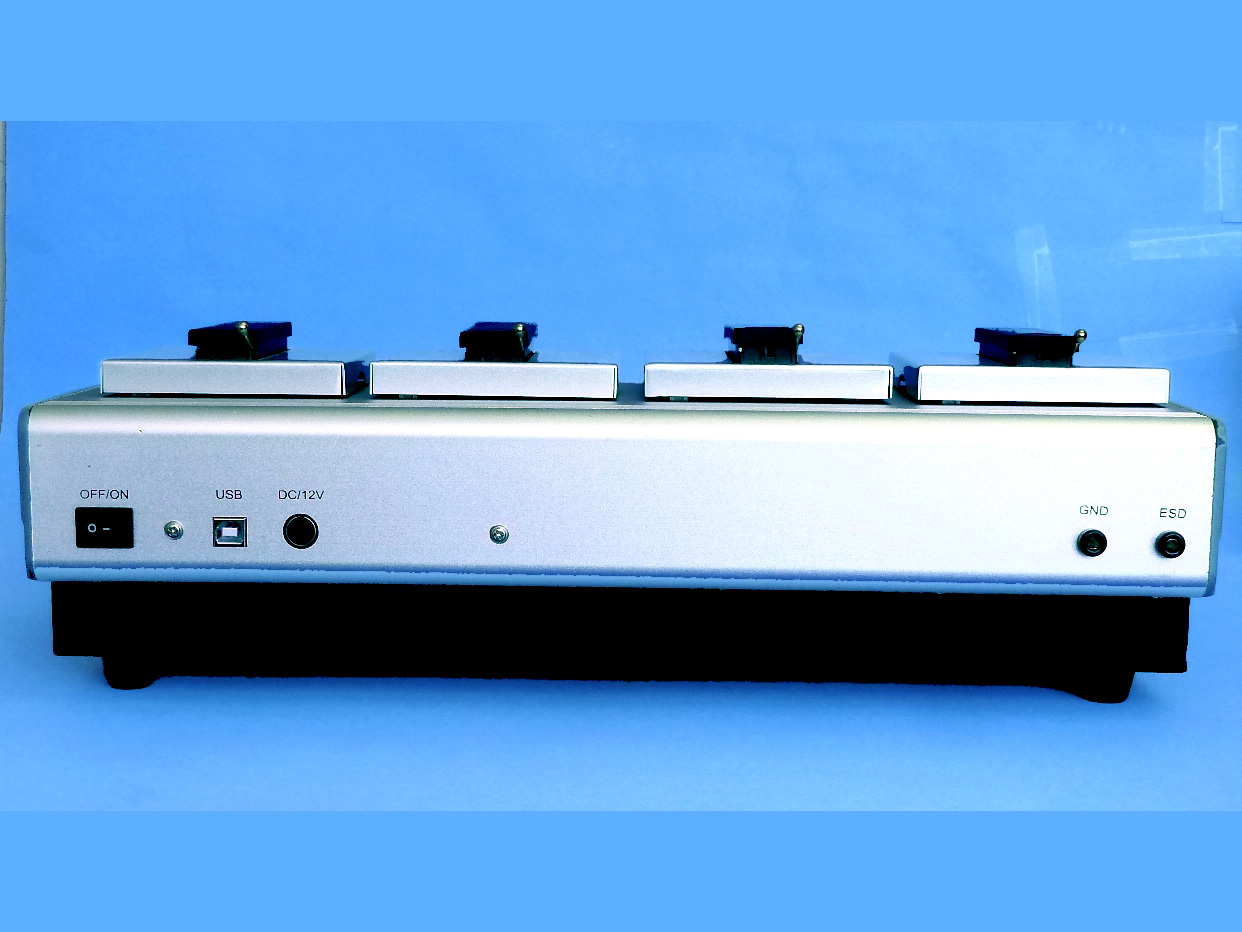

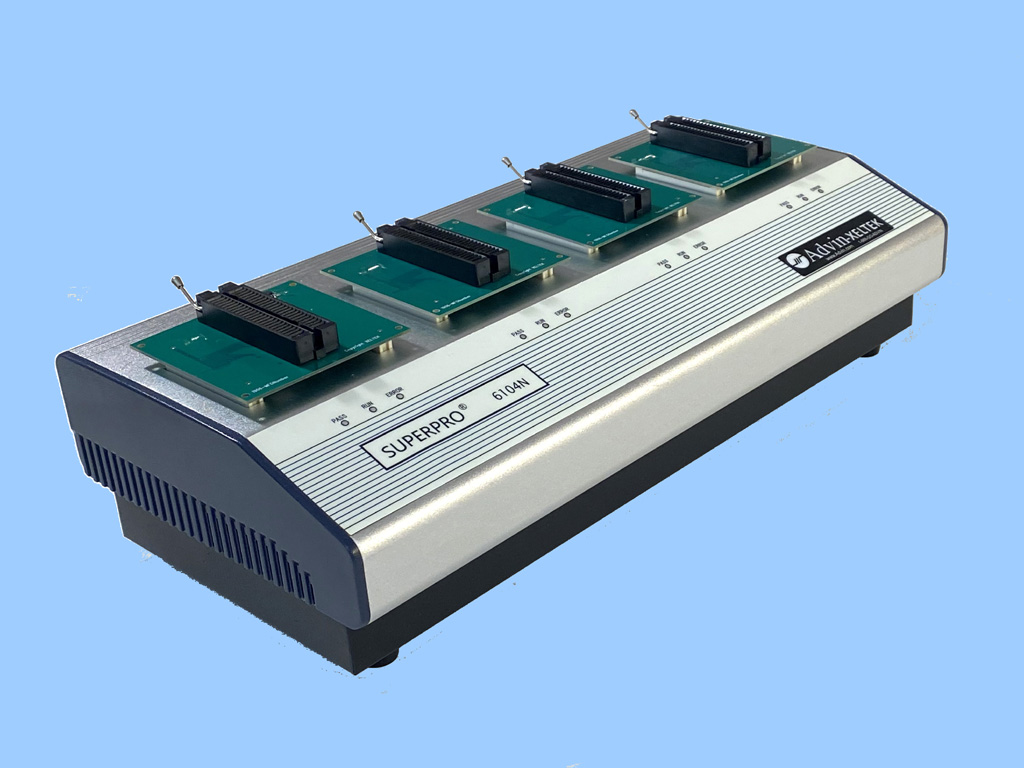

Back View
|

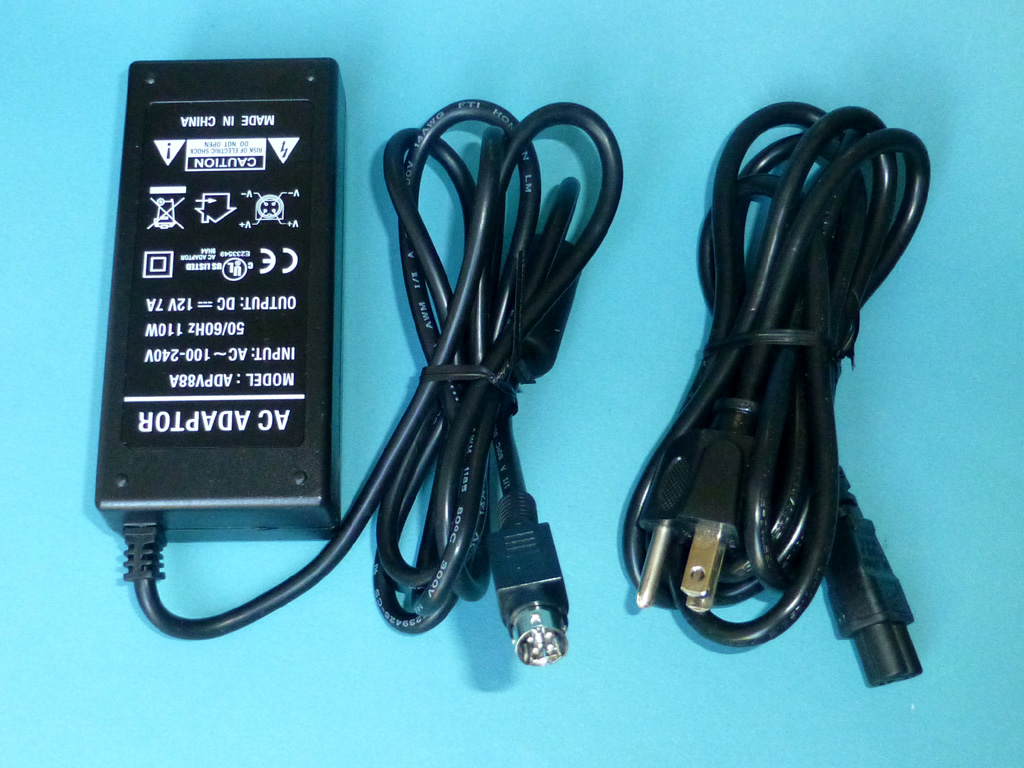

AC Power Supply
|

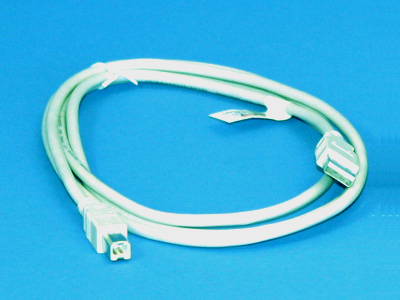

USB cable
|

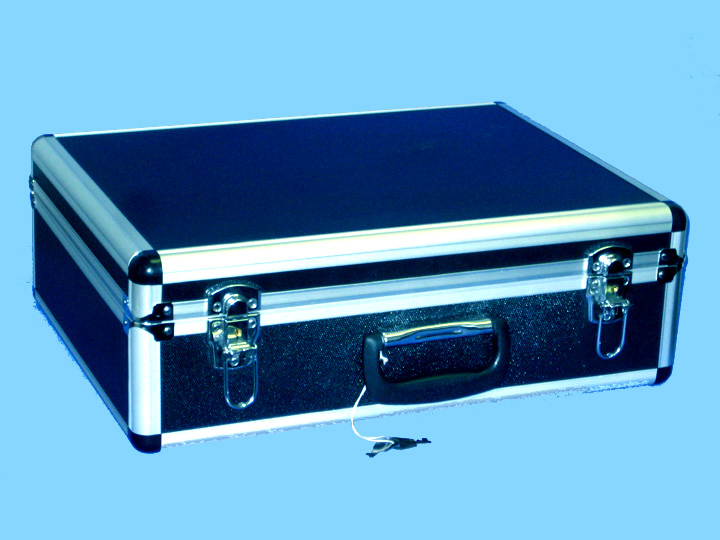

Carry case (20x15x7")
|

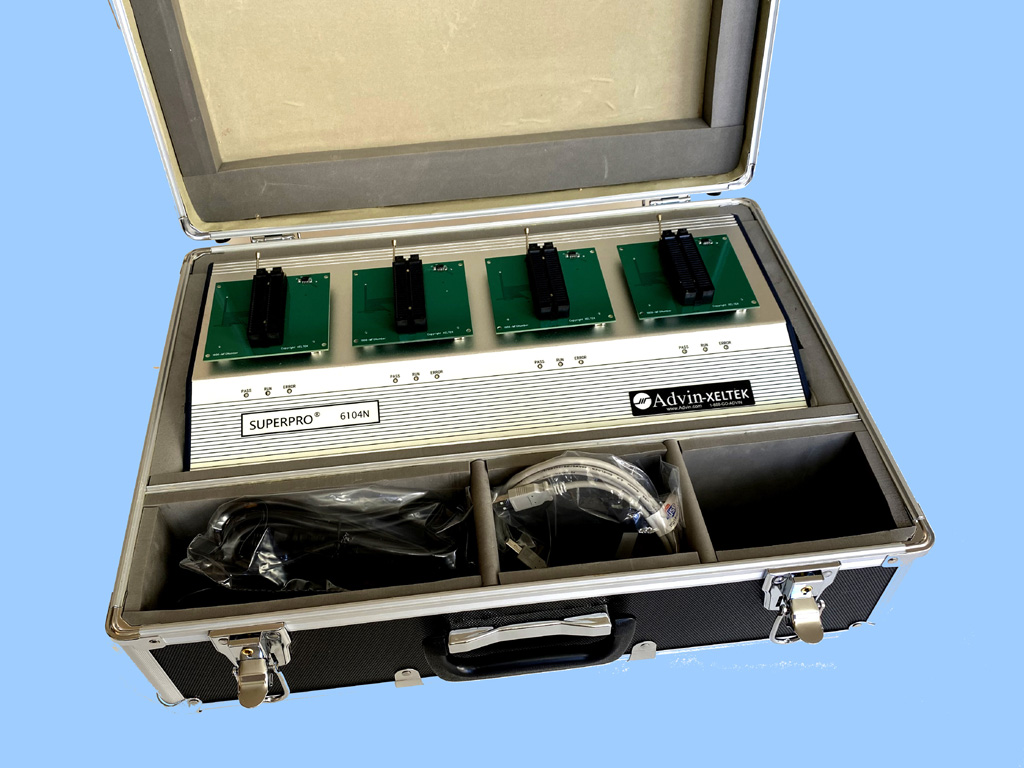

Inside view
|
|
OPTIONAL ITEMS

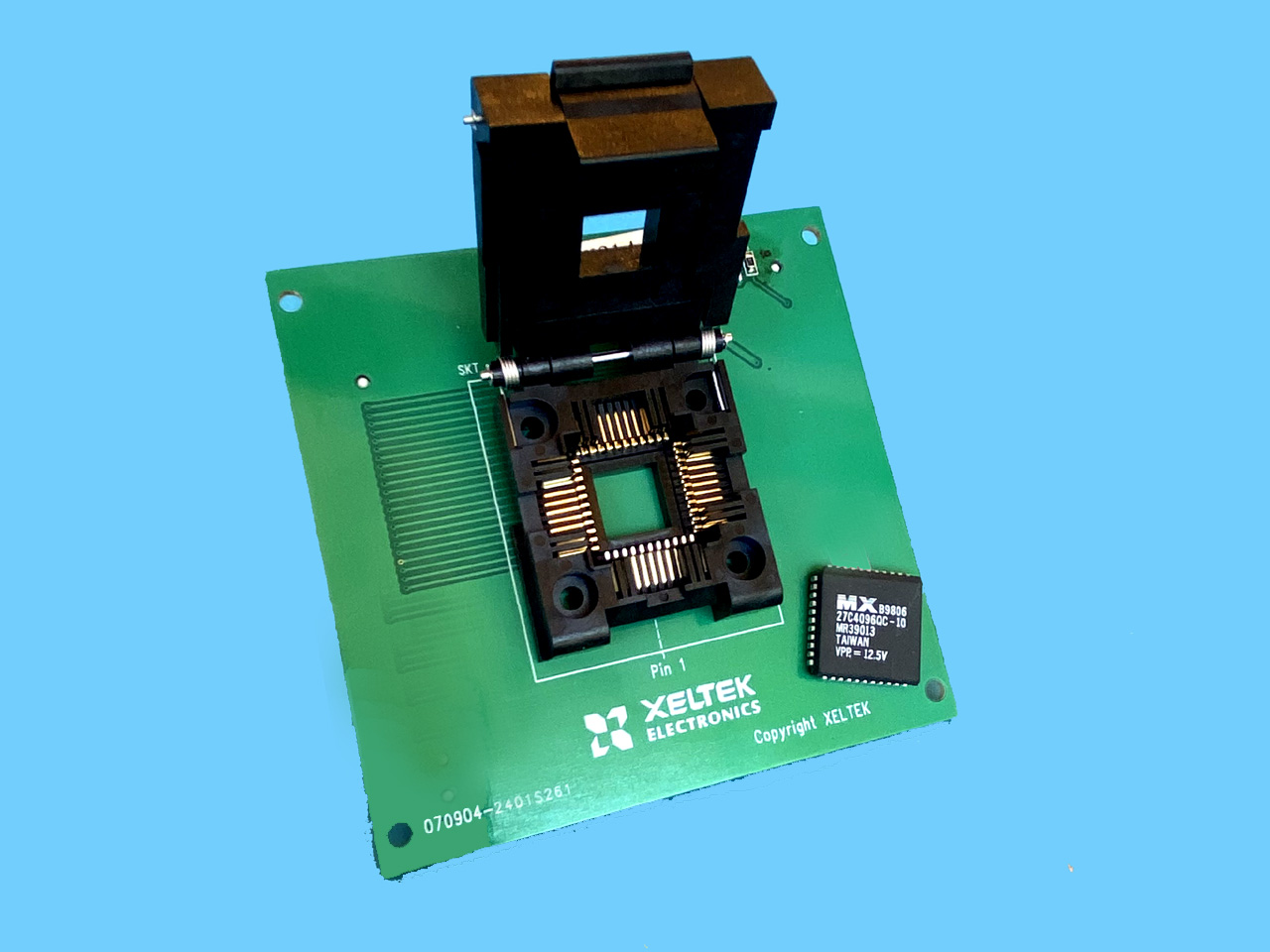

- Programmer adapters for different SMD device packages.
(

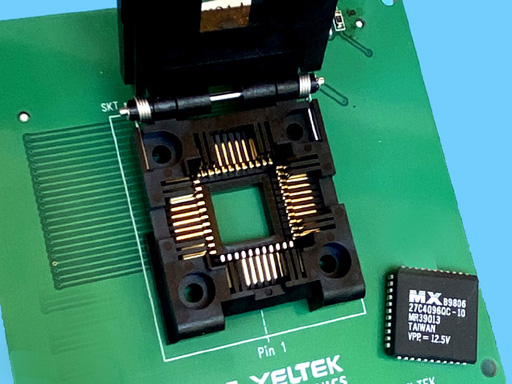

SMD Programmer Adapters )
WARRANTY
- 2-years. Programmer is warranted to be free of manufacturing
or workmanship defects for two (2) years from the date of purchase.
Warranty covers parts, labor, and free UPS ground shipping from
Advin back to customer. (Free ground shipping applies to 48-states
and Canada only).
|
IC Chip Devices Supported by this Gang Programmer
