SuperPro-6100N with No DIP Socket $1,295       (Product code: 6100N-ND)
SuperPro-6100N with DIP Socket $1,495       (Product code: 6100N-WD)

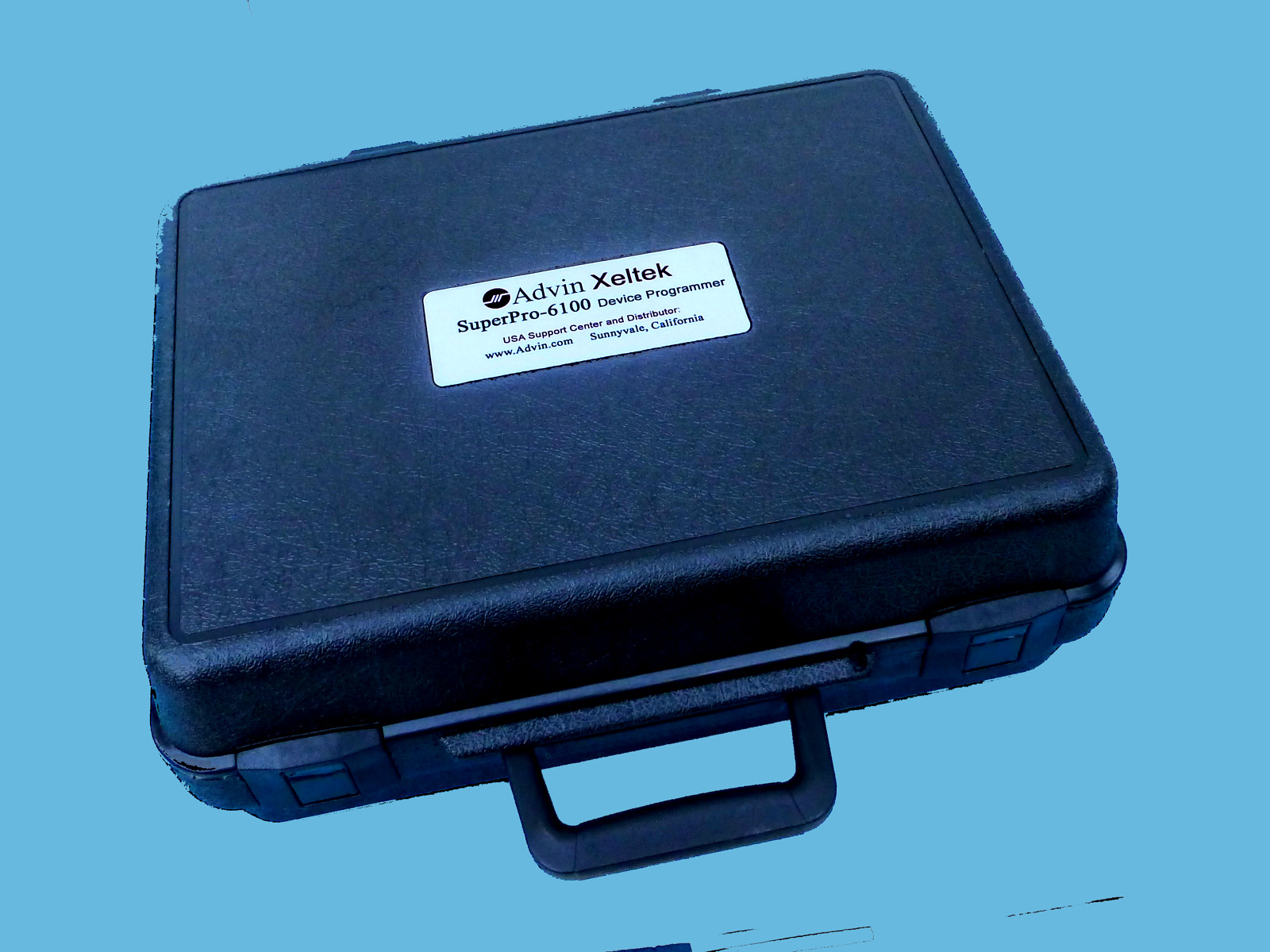

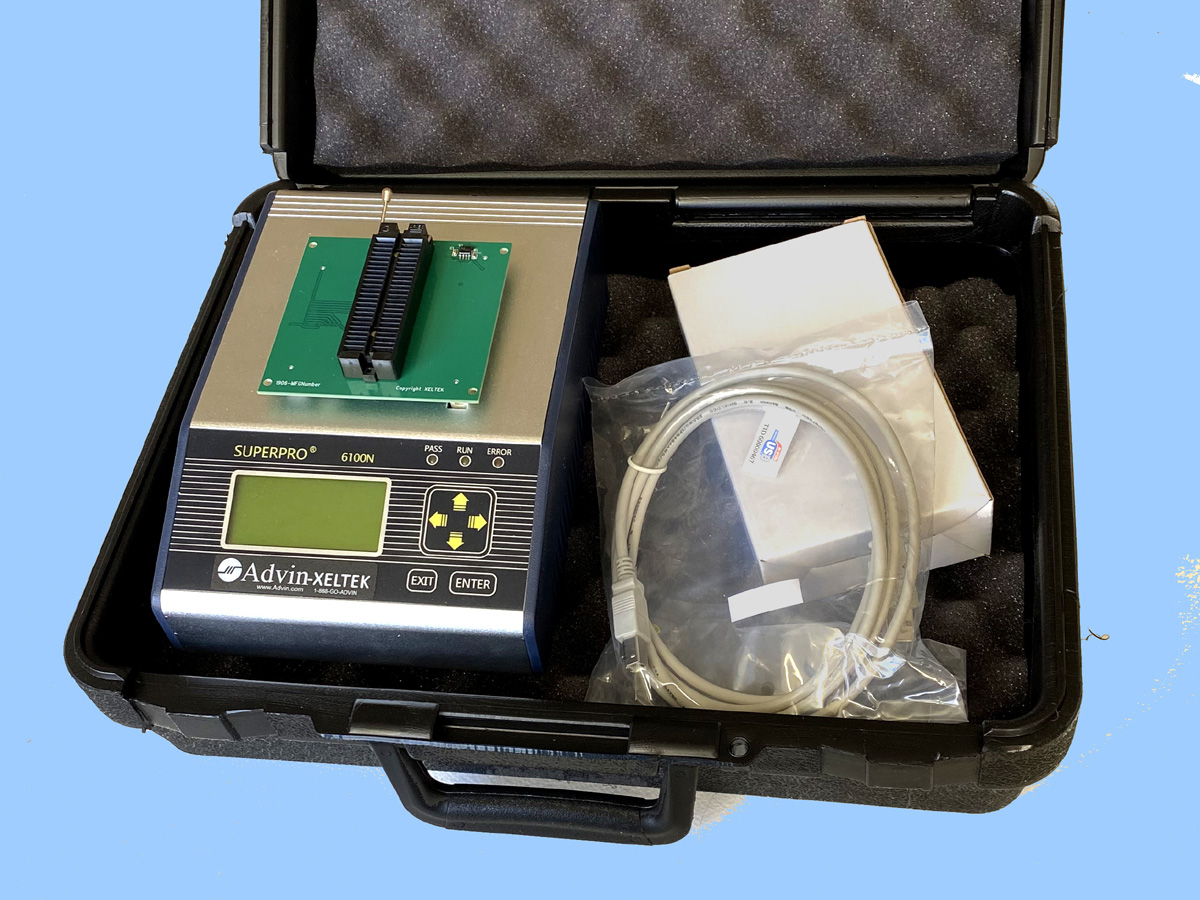

SuperPro-6100N with DIP Socket & Carry Case $1,595       (Product code: 6100N-DC)

  IC Chip Devices Programmed by this Universal Programmer

  SMD Programmer Adapters

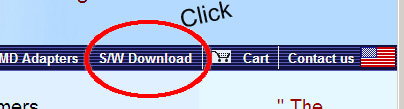

  Programmer Software Download Central

  Programmer Datasheet PDF

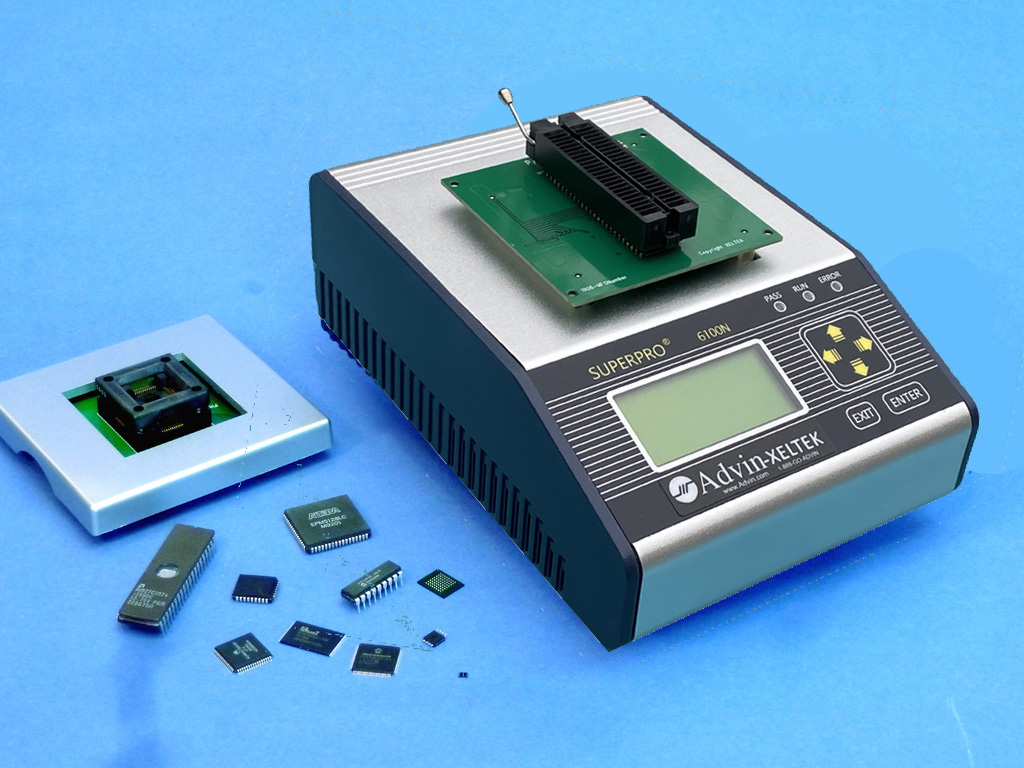

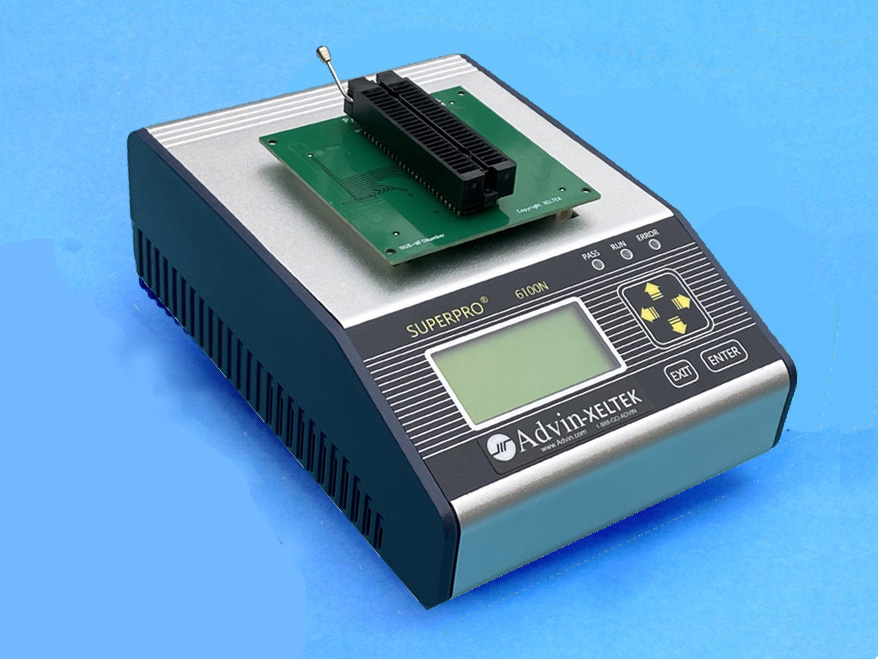

SuperPro-6100N Universal Programmer is our most popular universal programmer model for industrial applications. Its huge supported IC chip device list covers all kinds of IC chips used by a lab or a small production line. If you are operating a lab or work in an electronics industry, you may want to consider this model instead of a lower level model. Otherwise there is a possibility that you may need to buy another programmer down the road just because a lower level programmer cannot support the IC chips you may encounter.

Universal Programmer SuperPro-6100N Datasheet

UNIVERSAL PROGRAMMER HIGHLIGHTS

Supports 100,000+ IC devices from 350+ IC chip manufacturers. Supports state-of-the-art IC chips as well as vintage EPROMs, PROMs and other devices. Capable of stand-alone operation (requires optional CF card) Supports low voltage chip types with Vcc as low as 1.2v. High programming throughput USB 2.0 high-speed PC interface Programmer-control S/W supports XP / Vista / Windows 7, 8 and 10 CE and RoHS compliant

UNIVERSAL PROGRAMMER FEATURES

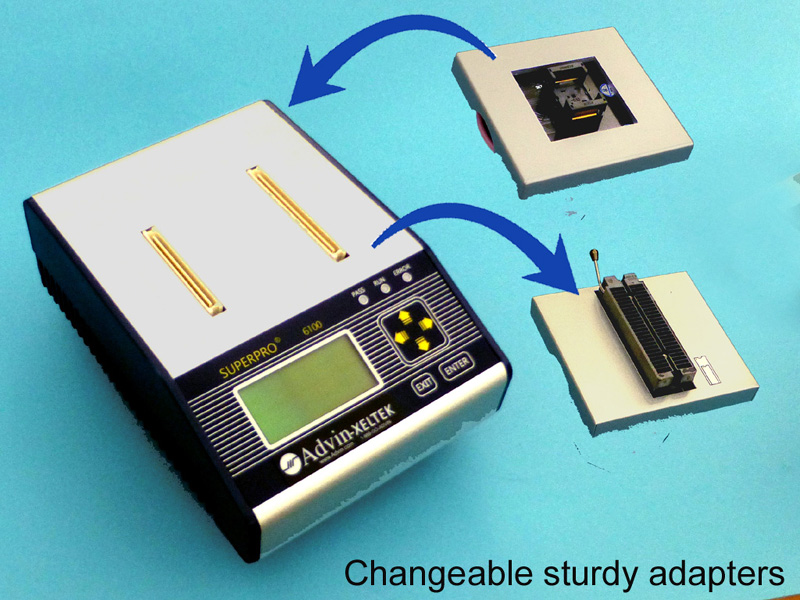

IC CHIP DEVICE SUPPORT Supports 100,000+ IC devices from 350+ IC chip manufacturers. IC device types supported include: FLASH memory, EPROM, EEPROM, Serial EEPROM, FPGA Configuration Serial PROM, NVRAM, PAL, PLD, CPLD, EPLD, NAND Flash, Microcontroller, PIC Micro, Logic Devices, etc. Supports standard DIP and skinny DIP packages from 8 to 48-pins on standard equipment Supports a wide variety of surface-mount devices (SMDs) and other IC device packages with reliable factory-made adapters. Packages supported include: PLCC, CLCC, SOIC, LAP, DFN, QFN, QFP, TQFP, LQFP, PAFP, TSOP, SOP, SSOP, PSOP, TSSOP, SON, BGA, EBGA, FBGA, VFBGA, µBGA, etc. Free software updates can be downloaded via internet at any time.

PROGRAMMER SPEED Ultra fast programming speed via USB interface. Programs high-density flash memory chips at near-theoretical maximum programming speed. The Production Mode feature allows programming to start automatically as soon as a chip is loaded into the programming socket. How [Production Mode] works

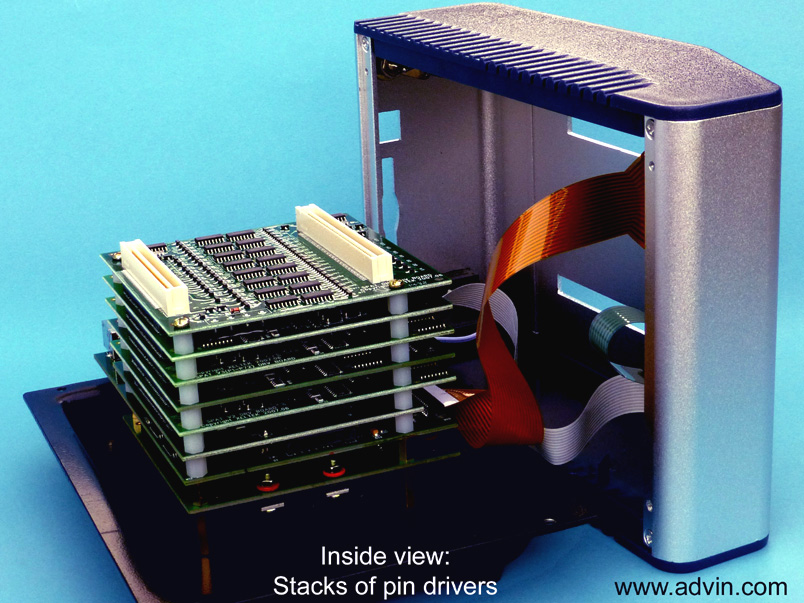

ADVANCED UNIVERSAL PROGRAMMER HARDWARE Advanced hardware design provides clean signals and allows programming of low-voltage chips reliably. The programmer has 144 universal pin-drivers built-in. There is no need to add additional or optional pin-drivers even when you are programming large complex chips, up to 144-pins. (As long as you have the proper SMD-to-programmer adapters.) Since each pin-driver is software programmable, proper voltage levels will be applied to each and every pin, not just the Vcc pins, allowing true low-voltage programming for low-voltage chips. Reverse insertion check and pin continuity check help to prevent chips from accidental damage. Over-current and over-voltage protection ensures safety of the chips and programmer hardware.

EASY-TO-USE UNIVERSAL PROGRAMMER SOFTWARE Programmer-control S/W supports XP, Vista, Windows 7, 8, 10. User-friendly software allows you to do these and more easily: Read data from a master chip, put it in the data buffer Save the data to a file Program a new chip with this data Erase a used EE chip before program it Secure the chip so that others cannot copy it Load data from a file instead of from a master chip Display the data buffer and allow you to edit it Search the data buffer for a certain pattern Do an AUTO sequence such as [Erase, Program, Verify and Secure] with just one click Plus a whole lot more     See how easy it is to use the software

ADVANCED SOFTWARE FEATURES Advanced functions allow you to do things that would be impossible to do with lower level programmers or competing products. These include:: The Project function allows you to store settings such as IC chip manufacturer, chip selection, data filename, device configuration, programming options, etc., into different project files. Data splits: 1-to-2, or 1-to-4, for both byte-wide and word-wide memory chips. Byte swap: for Intel or Motorola byte arrangements Optionally do write-protection on selected sectors Optionally do read-protection on selected blocks Do specific device configurations for Microchip PIC micros Setup counters so that your operator can easily keep track of how many chips have been programmed. Plus a whole lot more

FLEXIBLE MULTI-MODE OPERATIONS Convenient PC-controlled mode, via high speed USB 2.0, lends to easy operation for the R&D and engineering environment. Stand-alone operation is provided by a built-in 6-key keyboard and a 4-line LCD display. (Requires optional Compact Flash Card for storing programming algorithms which are downloaded from PC to programmer. Once the programming algorithms and data files are stored in the Compact Flash Card, the programmer can be operated without connection to a PC.) Built-in LEDS and the LCD display panel help to increas through-put in production mode. How the LEDs work

USEFUL AS A PRODUCTION PROGRAMMER Putting multiple units together in stand-alone mode creates a multi-site concurrent programming environment for volume production. The advantages, over a traditional gang programmer, are: Flexible and expandable: start with one unit and expand by adding more units when the need arises. Concurrent programming: each programmer begins to program as soon as its socket has been loaded. Chances are, by the time you finish loading the last programmer, the first one is already done.

UNIVERSAL PROGRAMMER SPECIFICATIONS

IC CHIP DEVICE SUPPORT Chip Packages Supported on Standard Equipment: DIP, SDIP. Chip Packages Supported with Optional SMD Adapters: PLCC, CLCC, SOIC, LAP, DFN, QFN, QFP, TQFP, LQFP, PQFP, TSOP, SOP, SSOP, PSOP, TSSOP, SON, BGA, EBGA, FBGA, VFBGA, µBGA, etc. Typical view of SMD programmer adapters:     IC CHIP DEVICE UPDATES Software and chip programming algorithms are updated regularly. Current software can be downloaded free of charge HARDWARE & ELECTRICAL PC interface: High speed USB 2.0   AC power supply: Input 100V-240V AC, 50/60 HZ. Output 12VDC, 2 Amp. Programmer physical size: 8.5" x 5.8" x 4.75" high (216 mm x 149 mm x 120 mm) Net weight (programmer unit, AC power supply and USB cable): 4.25 Lbs. Gross shipping weight: 9 Lbs. WARRANTY 2-years. Programmer is warranted to be free of manufacturing or workmanship defects for two (2) years from the date of purchase. Warranty covers parts, labor, and free UPS ground shipping from Advin back to customer. (Free ground shipping applies to 48-states and Canada only). INCLUDED ITEMS   Programmer unit with 144-pin interface connectors to optional adapters. USB Cable. AC power supply. User-feedback form. 48-pin DIP ZIF socket. (when you order "SuperPro-6100N with DIP Socket") Durable storage and carry case. (when you order "SuperPro-6100N with DIP Socket & Carry Case")

Back View

USB cable

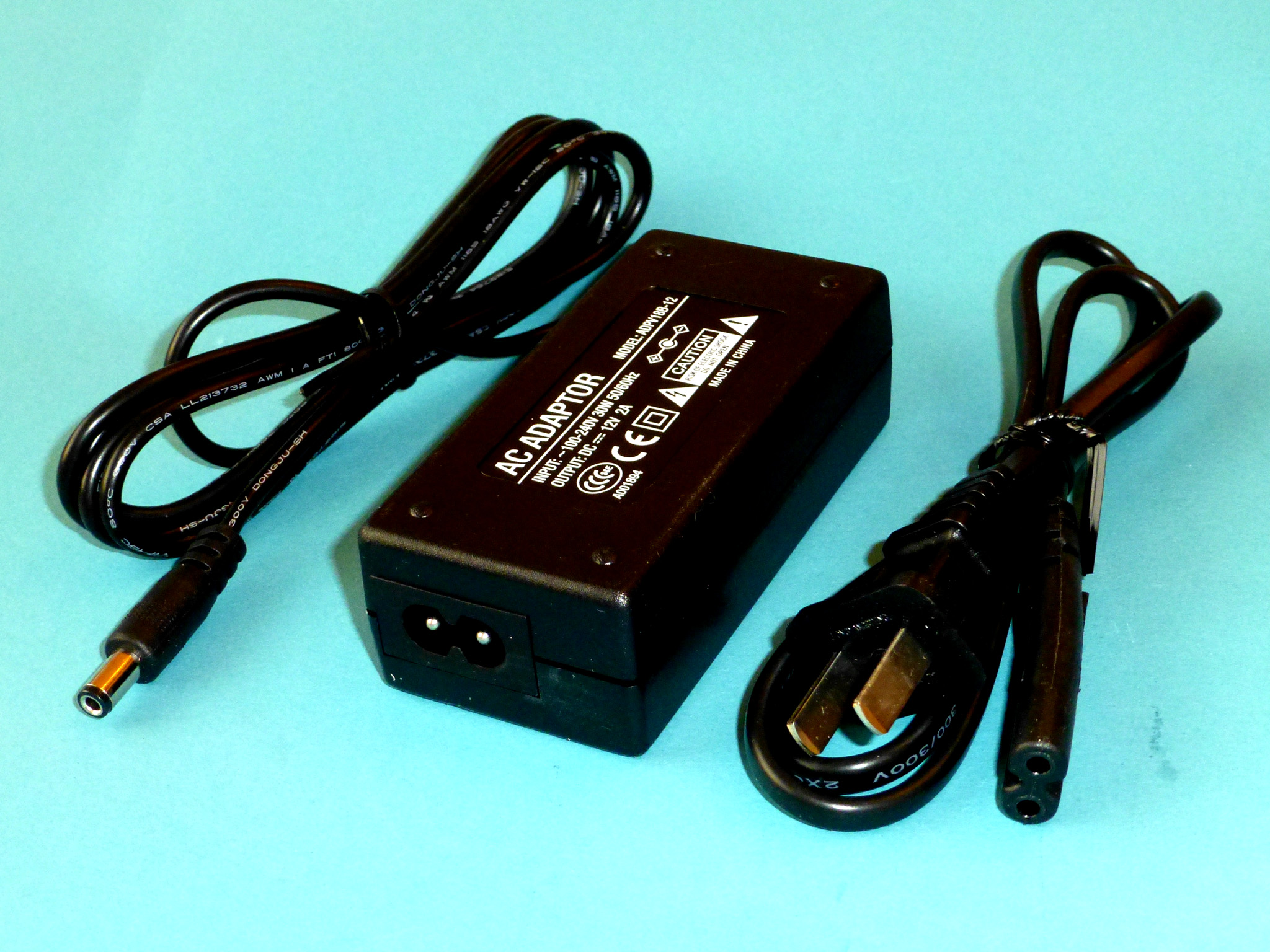

AC Power Supply

OPTIONAL ITEMS

Compact flash card for stand-alone operation.

SMD to programmer adapters for different SMD device packages such as SOIC, PLCC, TSOP, etc.
Please see:
  SMD to Programmer Adapters

---
