SMD Programming Adapters (Lead time usually 1-3 days ARO) |
|
|
For these EPROM Programmers: SuperPro-610P, 600P, 500P, M, 611S, 601S, 501S, SpeedPro-3000A, 580A, 280A |
|
|
(
Socket adapters for OTHER programmers) |
|
Jump to: | |||||
 |
PLCC Adapters |  |
SOIC, SOP, MSOP Adapters | ||
 |
TSOP Adapters |  |
TSSOP Adapters | ||
 |
PSOP, SSOP Adapters |  |
TQFP (LQFP) Adapters | ||
 |
LAP (DFN,MAP,MLP) Adapters |  |
QFN Adapters | ||
 |
BGA Adapters |
|
MISC | ||
|
Programmer adapters for PLCC IC chips Pitch=1.27 mm |
|||
| # of Pins | IC Body Width (mm) |
Device Examples (EXAMPLES only. They support a lot more IC chips than shown below. Pls see IC Chips Lists) | ||

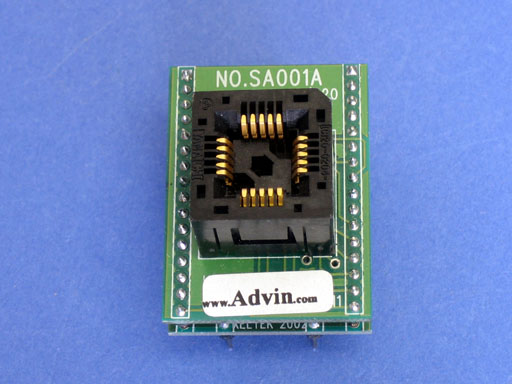

| SA001A View |
20 | 9 x 9 |
20-pin PLCC adapter, open-top socket. For 20-pin PLCC devices such as Altera EPC1441, EPC2; Lattice GAL16V8, PAL16R4, etc. How to use SA001A open-top programmer adapter. |
$165 Buy |
| SA008A View |
28 | 11.5 x 11.5 |
28-pin PLCC adapter, open-top socket. For 20-pin PLCC devices such as GAL20V8, PALCE22V10, etc.. |
$165 Buy |

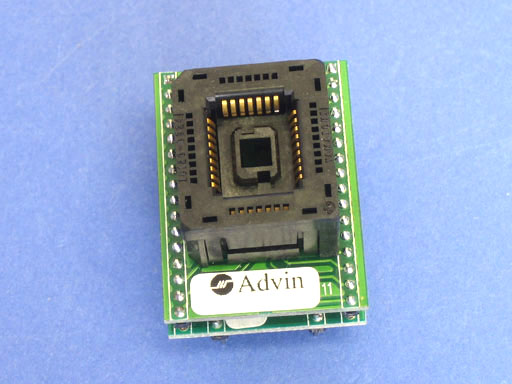

| SA015A
View |
32 | 11.5 x 14.1 |
32-pin PLCC adapter, open-top socket. For 32-pin PLCC devices such as AMD 27C512,27C010,29F040, Atmel 29C020, SST39SF040, etc. (For a more durable socket, please see SA412A, below) |
$165 Buy |

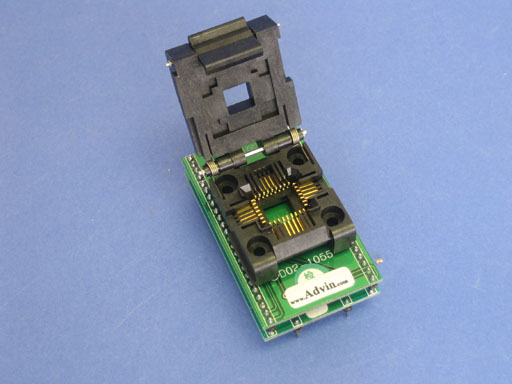

| SA412A View |
32 | 11.5 x 14.1 |
32-pin PLCC adapter, clam shell socket. Same as above (SA015A), but has clam shell socket (lasts twice as long) instead of auto-eject socket |
$215 Buy |
| SA412A-LCC View |
32 | 11.5 x 14.1 |
32-pin LCC adapter (Leadless Chip Carrier), clam shell socket. For 32-pin LCC devices such as AMD and Intel 27C512,27C010, etc. |
$395 Buy |

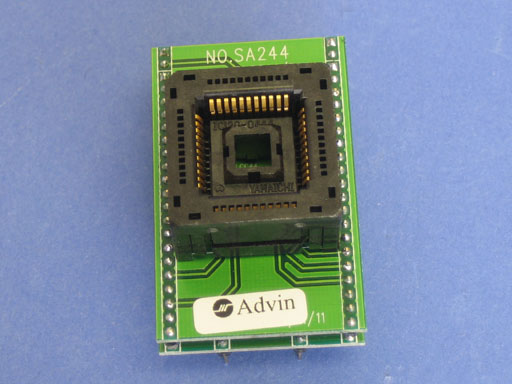

| SA244 View |
44 | 17.5 x 17.5 |
44-pin PLCC adapter, open-top socket. 89C51, 27C1024, MACH111, EPM7032, PSD311, etc. (For a more durable socket, please see SA411A, below) |
$165 Buy |

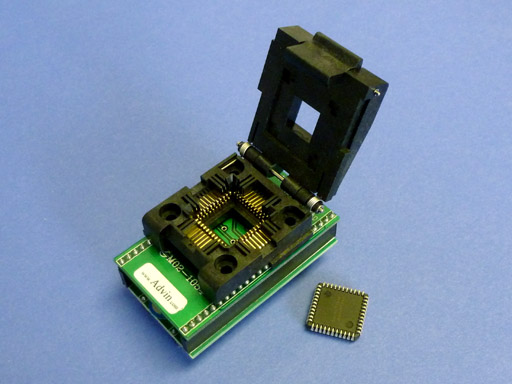

| SA411A View |
44 | 17.5 x 17.5 |
44-pin PLCC adapter, clam shell socket. Same as above (SA244), but has clam shell socket (lasts twice as long) instead of auto-eject socket |
$215 Buy |

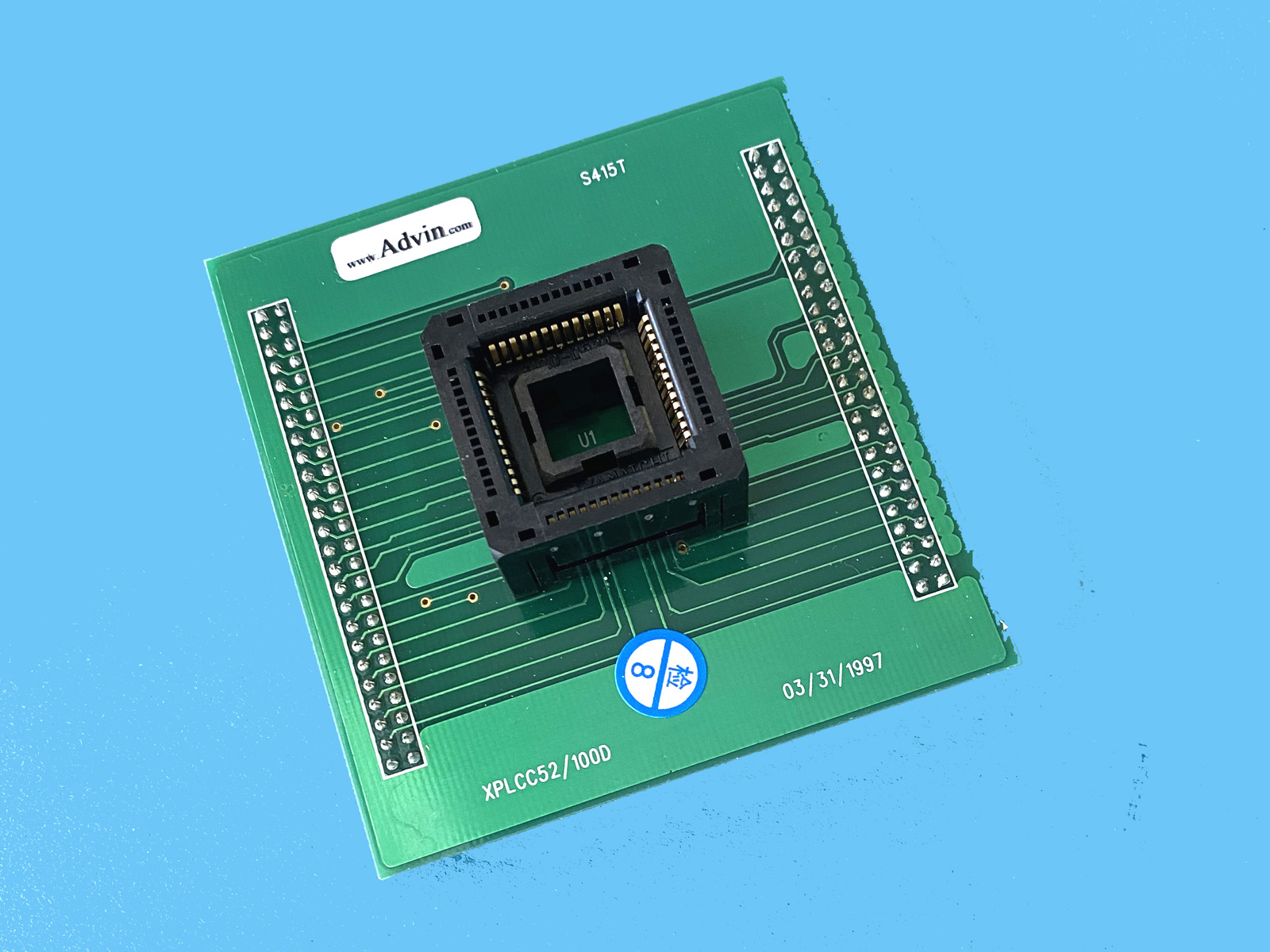

| S415T * View | 52 (Requires PEP) |
19.2 x 19.2 |
52-pin PLCC adapter, open-top socket. Supports devices such as: Freescale/Motorola 68HC705B16, 68HC908AS32A, 68HC908AS60A. |
$249 Buy (In stock) |

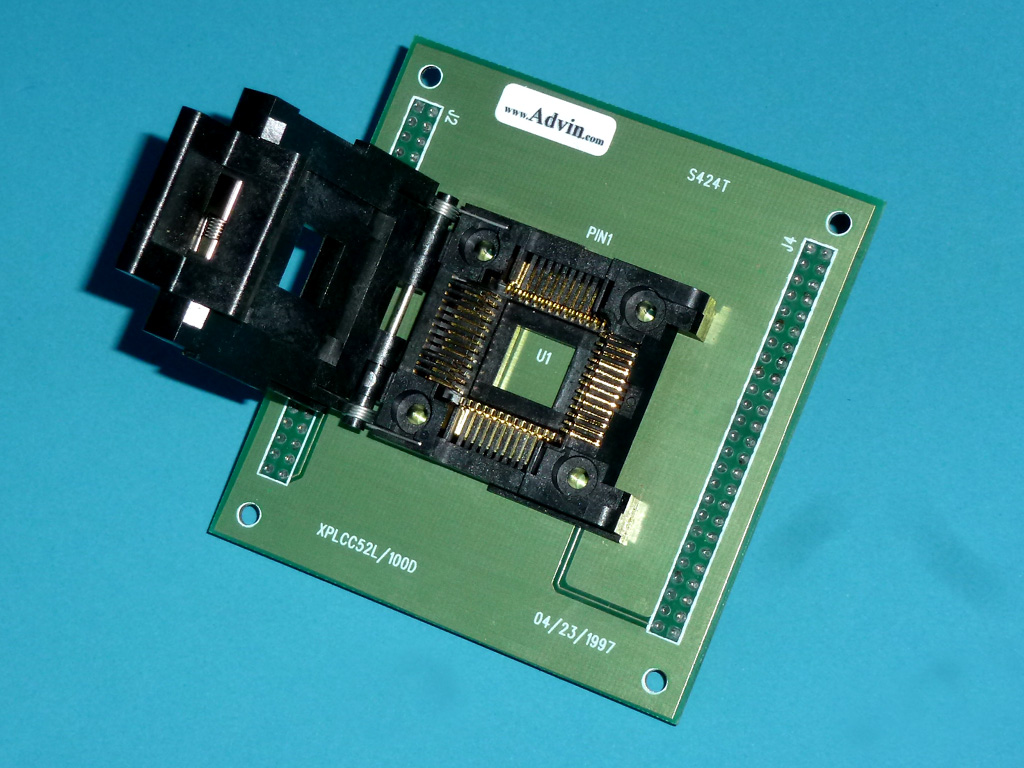

| S424T * View | 52 (Requires PEP) |
19.2 x 19.2 |
52-pin PLCC adapter, clam shell socket. Supports devices such as: Freescale/Motorola 68HC705B16, 68HC908AS32A, 68HC908AS60A. |
$249 (Not in stock) |
|
Programmer adapters for SOIC and SOP devices Pitch=1.27 mm |
|||
| # of Pins | IC Body Width (mm) |
Device Examples (EXAMPLES only. They support a lot more IC chips than shown below. Pls see IC Chips Lists) | ||

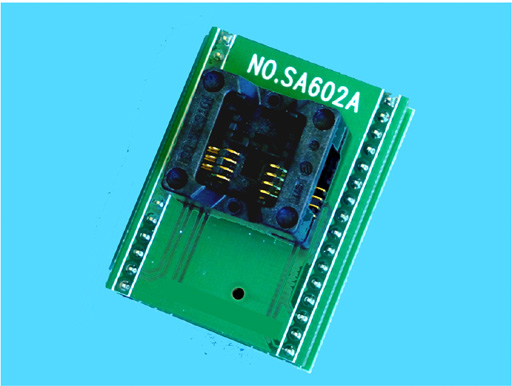

| SA602A View |
8-pin |
4 mm (150 mil) |
8-pin SOIC Adapter (body width, 150 mil) For 8-pin SOICs, eg. Xilinx XC17xx, Atmel 24Cxx, Microchip 24xx, 24LCxx. (Open-top socket) (If you program a lot of 8-pin SOICs, use this one for easier handling. If you program just a few, use SA602 for flexibility) |
$165 Buy |

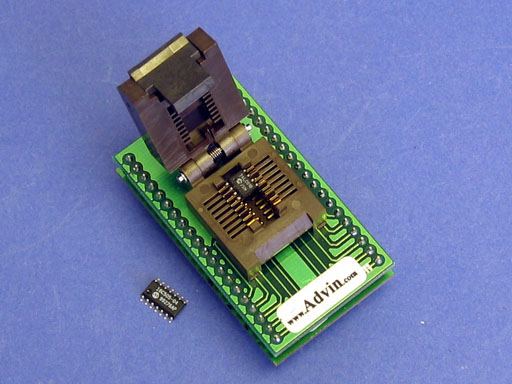

| SA602 View |
8-16 |
4 mm (150 mil) |
16-pin SOIC Adapter (4 mm) For 8-pin to 16-pin SOICs, eg. Microchip 8-pin 24xx; 14-pin PIC16F676 |
$185 Buy |
| SA605B |
8 - 20  |
5.3 mm (208 mil) |
20-pin SOIC Adapter (5.3 mm) For 8-pin to 20-pin SOICs, eg. Microchip 12C508A. (Open-top socket) | $165 Buy |

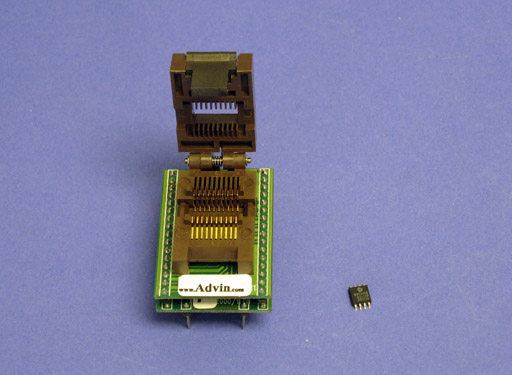

| SA023A View |
8 - 20 |
5.3 mm (208 mil) |
20-pin SOIC Adapter (5.3 mm), clamshell For 8-pin to 20-pin SOICs, eg. Microchip 12C508A. (Clamshell socket). |
$185 Buy |

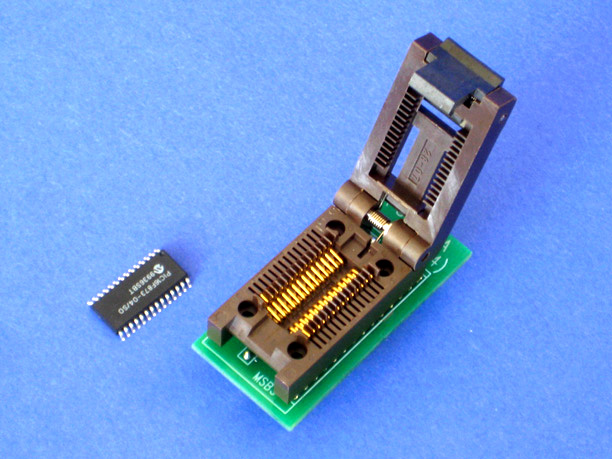

| SA404 View |
28 | 7.6 mm (300 mil) |
28-pin SOIC Adapter (300 mil) For 20-28 pin SOICs: PIC16C5x, 89C2051, AT28LV64, GAL22V10 |
$195 Buy |
| SA646 View |
32 | 7.6 mm (300 mil) |
32-pin SOIC Adapter (300 mil) For 32 pin SOICs: CY7C185, CY7C187, CY7C199. |
$205 Buy |

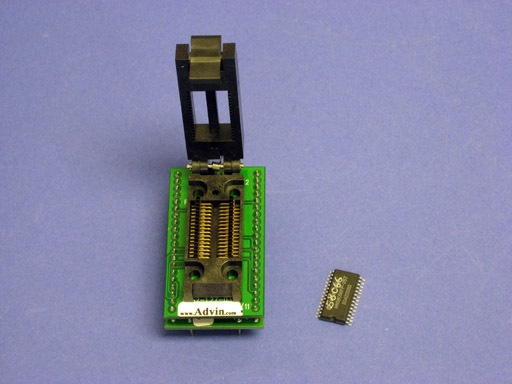

| SA630 View |
32 | 8.7 mm (344mil) |
32-pin SOIC Adapter (8.7 mm) For 28-pin Atmel 28R package (27LV256, 27LV512, 45DB161), etc. |
$195 Buy |
|
Socket adapters for PSOP, SSOP devices | ||||
| # of Pins | Body Width (mm) |
Pitch (mm) |
Device Examples | ||

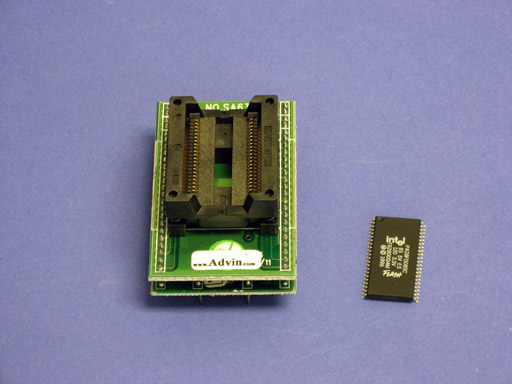

| SA638 View |
PSOP-44 | 13.3 | 1.27 | Adapter, PSOP-44, 13.3 mm body AM29F400B,29LV800B |
$225 Buy |
|
Socket adapters for TSOP devices | |||
| # of Pins | Body Size (mm) |
Device Examples | ||
|

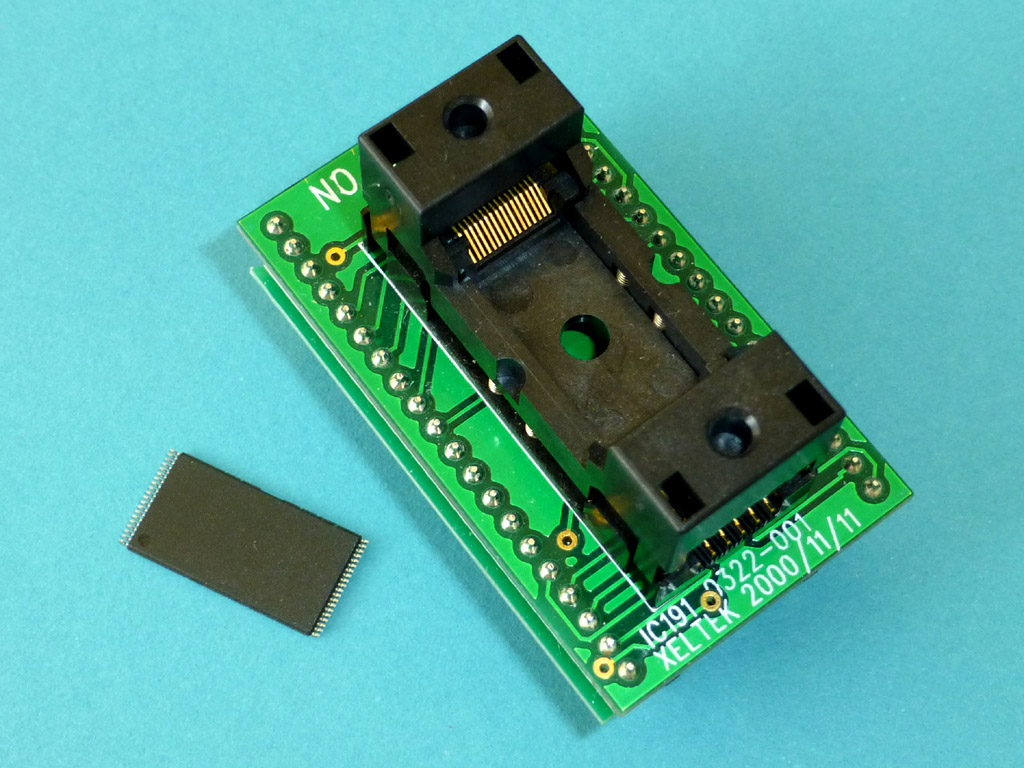

SA410T View |
32 | 8.0*18.4 (20mm) |
TSOP-32 adapter, 20 mm body Fits: AMD 29F040, Atmel 27C010, MX 29LV040, ST 29W004 (Base is 40-pin) |
$215 Buy |

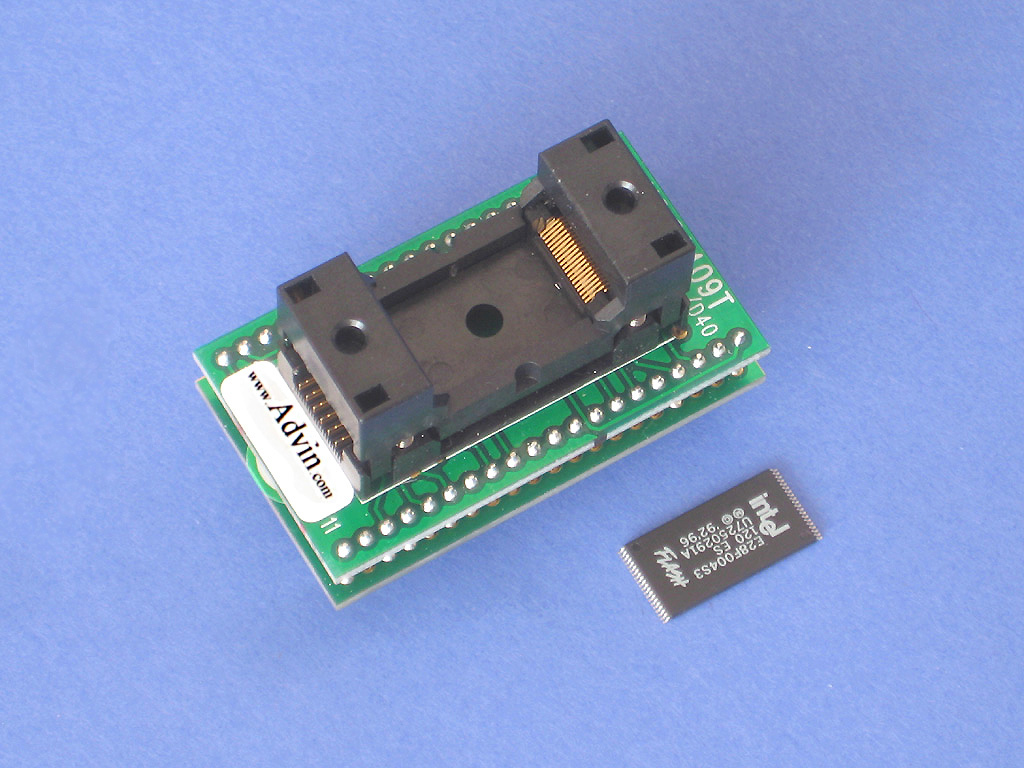

| SA409T View |
40 | 10.0*18.4 (20mm) |
TSOP-40 adapter, 20 mm body Fits: Intel E28F002/004/008, E82802AC, AMD 29F080 |
$215 Buy |

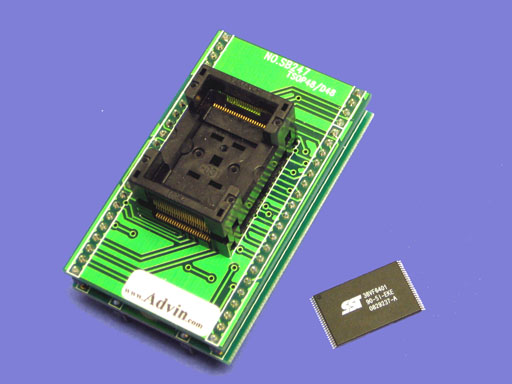

| SA247-B4806 View |
48 | 12.0*18.4 (20mm) |
TSOP-48 adapter, 20 mm body (For SuperPro-M, 600P, 610P, 601S, 611S, 500P, 501S programmer models only.) Fits: Intel E28F400,800, AMD 29F400,800; Macronix MX26LV160TT; Spansion S29GL016A, S29AL008J70TFI04; M29F160FT, etc. (Also called SB247-B4806). |
$215 Buy |
|
SA628-B011 View |
56 | 12.0*18.4 (20mm) |
TSOP-56 adapter (For SpeedPro-3000A programmer only.) Fits: Intel DT28F016SA, DT28F016SV, E28F016SA, etc. |
$215 Buy |
|
Socket adapters for TSSOP devices | ||||
| # of Pins | Body Width (mm) |
Pitch (mm) |
Device Examples | ||
|

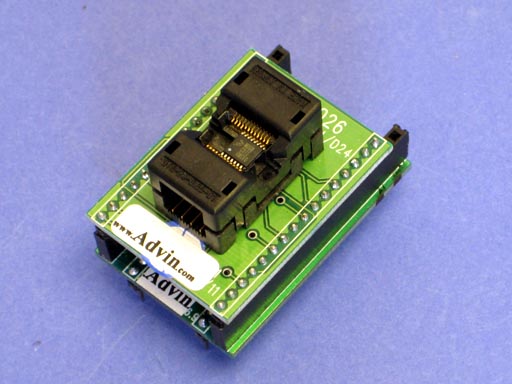

SA026 View |
24 | 4.4 mm (173 mil) | 0.65 |
TSSOP-24 adapter Fits 8-pin to 24-pin TSSOP devices (Atmel 8-pin 24Cxx; Microchip 8-pin 24LC16B, 14-pin 16F676, 16F688; Lattice 24-pin GAL22LV10C, etc.) Lead time: 7 days ARO. Please consider adapter below. |
$165 Buy |
|

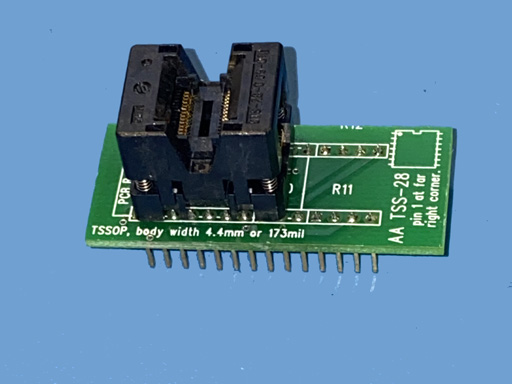

SA643 View |
28 | 4.4 mm (173 mil) | 0.65 |
TSSOP-28 adapter Fits 8-pin to 28-pin TSSOP devices (Atmel 8-pin 24Cxx; Microchip 8-pin 24LC16B, 14-pin 16F676, 16F688; Lattice 24-pin GAL22LV10C; Philips 89LPC931, 89LPC938; etc.) In stock. | $195 Buy |
|
Socket adapters for TQFP, LQFP devices Pitch=0.8 mm |
|||
| # of Pins | Body Size (mm) |
Device Examples | ||
| SA245A-B4805 View |
44 | 10 x 10 (1mm thick) |
TQFP-44 adapter (For SuperPro-600P, 610P, 601S, 611S, 500P, 501S programmer models only.) Fits: Atmel 89C51, Philips PSD311, Microchip PIC16F877A |
$265 Buy |
| SA245A-B005 View |
44 | 10 x 10 (1mm thick) |
TQFP-44 adapter (For SpeedPro-3000A programmer only.) Fits: Atmel 89C51, Philips PSD311, Microchip PIC16F877A |
$265 Buy |
|
USON, WSON, LAP, DFN, MAP, MLP, SAP Adapters (These package names are not standardized. Called by different names by different companies.) Plugs into DIP socket of programmer. | |||||
| # of pins | Device Size, mm | Pitch, mm | Device Examples | |||
|
SA724 View |
8 | 2x3 | 0.50 |
USON-8 Adapter, 8-pin, 2x3 mm device body Fits Atmel 8Y6 package (24C01AY6, 24C04Y6, 24C04BY6, 24C08AY6, 24C16AY6, 24C128BY6, etc); Microchip 24C02C-MC, etc. |
$495 Buy | |
|

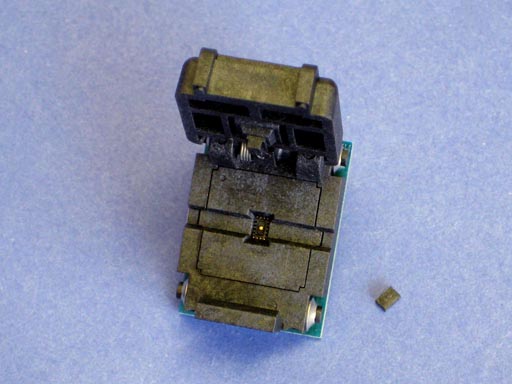

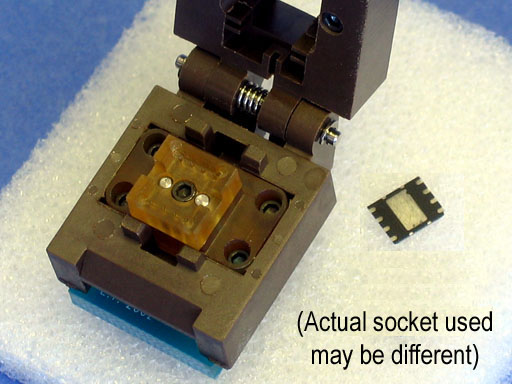

SA683 View |
8 | 5x6 | 1.27 |
LAP device adapter, 8-pin, 5x6 mm device body Fits Atmel 8Y4 & 8Y7 packages (24C128Y4, 24C256Y4, 24C256BY7, 24C512Y4, 45DB081D-M, etc); Microchip 24AA256-MF, 24LC512-MF, PIC12F629-MF, PIC12F675-MF; ST M25P20-VMP, etc. |
$495 Buy | |
|

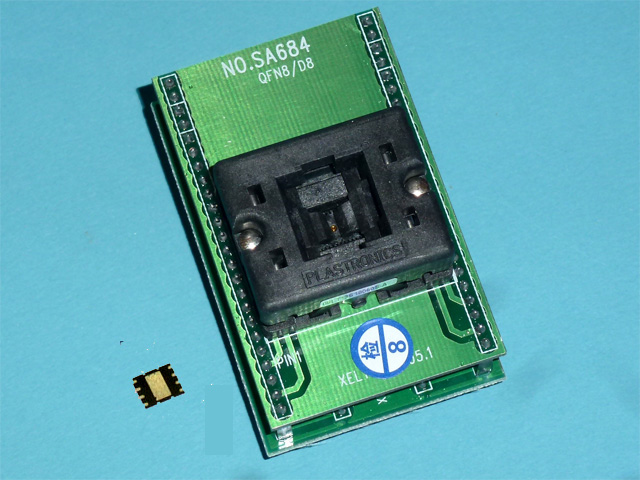

SA684 View |
8 | 6x8 | 1.27 |
LAP device adapter, 8-pin, 6x8 mm device body Fits AMD AM25FL016A WSON8; Atmel 45DB081-CN, AT24C1024 SAP8, AT24C512 LAP8, AT45DB161B CASON8; Macronix KH25L1605D SON8, MX25L12836E WSON8; Numonyx N25Q128 VDFPN8; Spansion S25FL128P WSON8; ST M24M01 LGA8, M25P128 VDFPN8; etc. |
$495 Buy | |
|
Socket adapters for QFN devices | ||||
| # of pins | Device Size, mm | Pitch, mm | Device Examples | ||
|
SA692 View |
20 | 4 x 4 | 0.50 |
QFN Adapter, 20-pin, 4 mm Fits ATtiny13A, ATtiny4313MU, Atmel ATtiny85V; Microchip PIC16F690, PIC16LF721, PIC18LF14K22; etc. |
$495 Buy |
|
SA759 View |
20 | 5 x 5 | 0.65 |
QFN Adapter, 20-pin, 5 mm Fits Microchip PIC18F14K50, PIC18LF13K50, etc. |
$495 Buy |
|

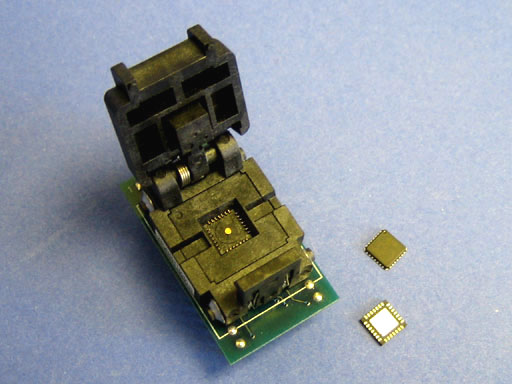

SA685 View |
28 | 6 x 6 | 0.65 |
QFN Adapter, 28-pin, 6 mm xxx Fits Microchip PIC16F876A, PIC16F1936, PIC18F26K20, etc. |
$495 Buy |
|

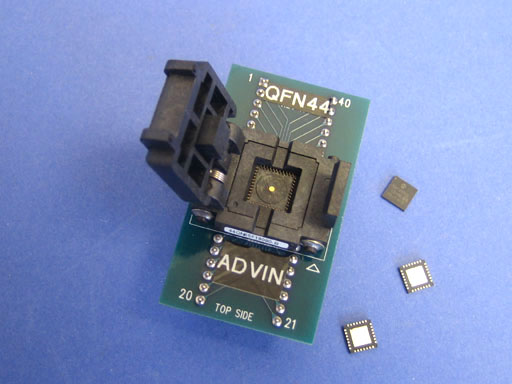

SA712 View |
44 | 7 x 7 | 0.50 |
QFN Adapter, 44-pin, 7 mm xxxx Fits Microchip PIC18F4420, PIC18F4520, PIC18F44J10, etc. Clam shell. |
$495 Buy |
|

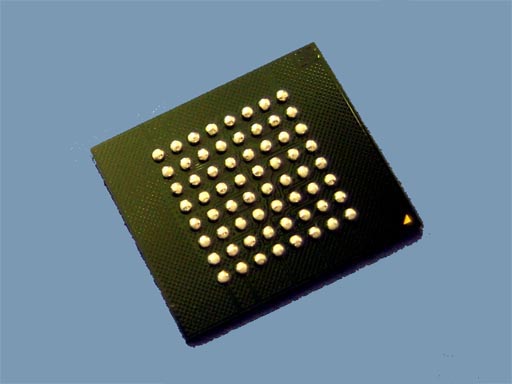

Socket adapters for BGA, uBGA, FBGA, etc. | ||||
| # of Pins | Body Size (mm) |
Pitch (mm) |
Device Examples | ||
| For BGA IC chips with 0.75 mm pitch (VFBGA) | |||||
|
SA644A-B025A -Y056F [View] |
56 | 10*7 | 0.75 | BGA-56 Adapter, 10x7, 0.75 mm pitch. Fits Intel GE28F640L30, GE28F128L18; Sharp LH28F640BNHG |
$495 Buy (Lead time 7-9 days) |
|
SA644A-B025A -Y056N [View] |
56 | 10*7 | 0.75 | BGA-56 Adapter, 10x7, 0.75 mm pitch. Fits Micron MT28F322D18, MT28F322D20; |
$495 Buy (Lead time 7-9 days) |

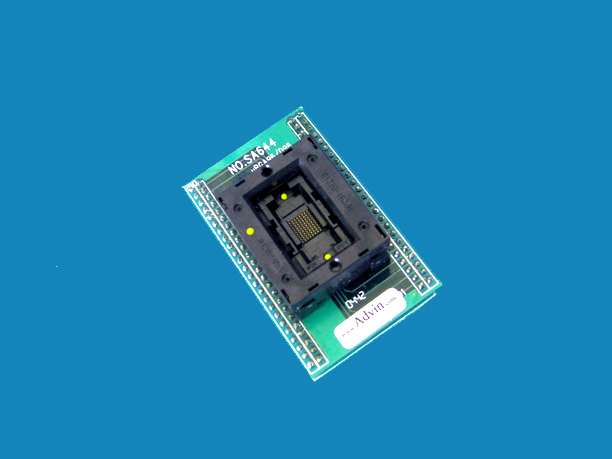

| SA644A-B028A -Y072F [View] |
56 | 10*7 | 0.75 | BGA-56 Adapter, 10x7, 0.75 mm pitch. Fits Intel G28F640J5, G28F640J5A |
$495 Buy (In stock) |
| For BGA IC chips with 1.0 mm pitch (EASY BGA) | |||||
|

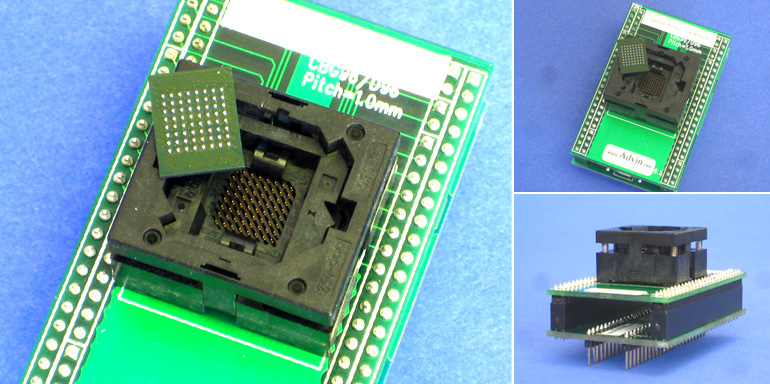

SA655E-B099A [View] |
64 | 10*13 | 1.00 | BGA-64 Adapter, 10x13, 1.0 mm pitch. Spansion S29GL032M,S29GL064A,S29GL128N, S29GL256N; ST M29DW128FH,M29W128GL; MX 29LA128DB,29LA640EH, etc. |
$495 Buy (Lead time 7-9 days) |
| SA655J-B037A [View] | 64 | 10*13 | 1.00 | BGA-64 Adapter, 10x13, 1.0 mm pitch. Intel PC28F160C3, PC28F320C3, RC28F160C3BD, RC28F320C3BA |
$495 Buy (Lead time 7-9 days) |
| MISC | ||
SC-1310-3
|
Storage/Carry Case, 13"x10"x3" Storage or carry case for SuperPro-M, 600P, 610P. Outside dimension is 13.5" x 10" x 3". Durable and protective. |
$139 Buy |
|
ISP- HEADER-01
|
ISP In-circuit adapter Supports Microchip PICs, Atmel 89S53, 90S4433, ST 72F micros etc. (Note: this solution supports only simple circuits that draw less than 30ma.) |
$195 Buy |
PWA-SP
|
Spare Power Adapter For SuperPro-xxxS, xxxP, Model M, SpeedPro-3000A, etc. Physical plug fits USA wall outlet. AC voltage input is universal and takes 85v to 260v input Output is 12 VDC, 2 Amp, center negatice. (To avoid potential danage to your programmer, avoid using low grade un-tested or improper AC power adapters.) |
$105 Buy |
| SP-CF-4G | Compact Flash Card, 4-GB Required by these programers for stand-alone operation: SuperPro-611S, SuperPro-601S, SuperPro-501S, SpeedPro-3000A. |
$49 Buy |
